Cat Cables

CAT 5E UTP Cable
CAT 5 UTP CCA Cable
CAT 6 UTP Cable
CAT 6 UTP CCA Cable
CAT 6 Outdoor Cable

4 Pair Unshielded Twisted Pair (UTP) 100 Ohm Data Cable, 24 AWG (0.5mm), Solid Bare Copper Conductors, Polyethylene Insulation, PVC Jacket, Rip Cord.

FEATURES

  • Fully Complies with the requirements of TIA/EIA 568 C.2.
  • Enhanced performance specification up to 100 MHz

  • Cables verified for performance with UL Certification and shipped with UL authorized markings and labels

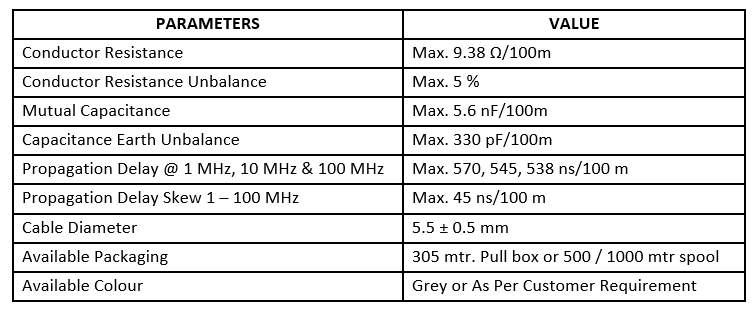

SPECIFICATION

Note: Bi-directional Testing for Return Loss, NEXT & PSNEXT



4 Pair Unshielded Twisted Pair (UTP) 100 Ohm Data Cable, 24 AWG (0.5mm) Solid Bare Copper Clad Aluminium Conductors, Polyethylene Insulation, PVC Jacket, Rip Cord.

FEATURES

  • Fully Complies with the requirements of TIA/EIA 568 C.2. for transmission parameters at high frequency range of 4 to 100 MHz
  • Enhanced performance specification up to 100 MHz

  • Optimized Cat 5 design offering light weight conductor with excellent transmission properties

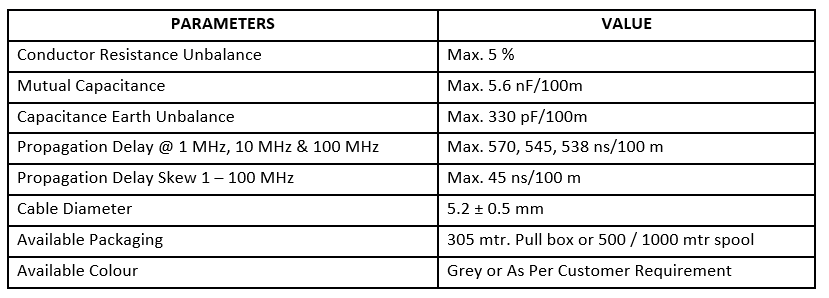

SPECIFICATION

4 Pair Unshielded Twisted Pair (UTP) 100 Ohm Data Cable, 23 or 24 AWG Copper Conductors, Polyethylene Insulation, Separator, PVC Jacket, Rip Cord.

FEATURES

  • Fully Complies with the requirements of TIA/EIA 568 C.2.
  • Enhanced performance specification up to 250 MHz

  • Cables verified for performance with UL Certification and shipped with UL authorized markings and labels

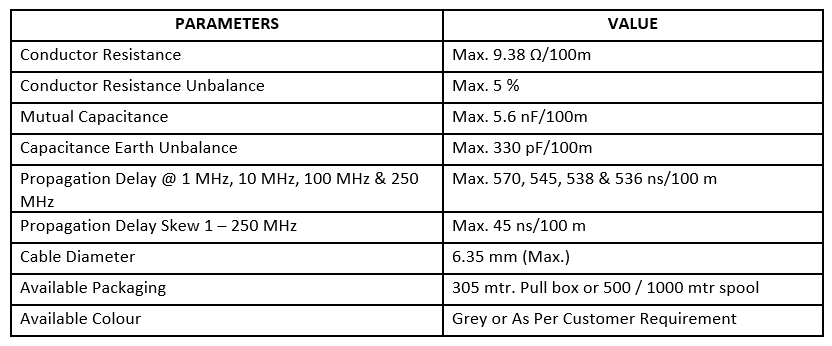

SPECIFICATION

Note: Bi-directional Testing for Return Loss, NEXT & PSNEXT



4 Pair Unshielded Twisted Pair (UTP) 100 Ohm Data Cable, 23 AWG Solid Bare Copper Clad Aluminium Conductors, Polyethylene Insulation, Separator, PVC Jacket, Rip Cord.

FEATURES

  • Fully Complies with the requirements of TIA/EIA 568 C.2. for transmission parameters at high frequency ranges upto 250 MHz
  • Enhanced performance specification up to 250 MHz

  • Optimized Cat 6 design offering light weight conductor with excellent transmission properties

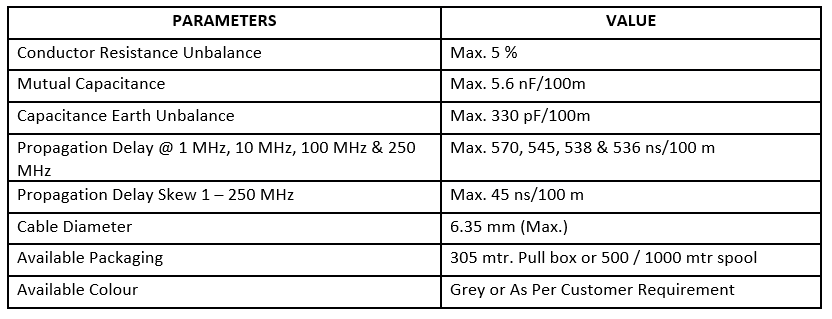

SPECIFICATION

Note: Bi-directional Testing for Return Loss, NEXT & PSNEXT

Consists of PE Insulated 23 AWG Solid Bare Annealed Copper Conductors, 4 Pair stranded over cross separator, LSZH Inner sheath and Black colour HDPE Outer Sheath.

FEATURES

  • Complies with the requirements of TIA/EIA 568 C.2. and ISO/IEC 1801
  • Performance specification up to 250 MHz
  • UV Resistance outer sheath

  • Double sheath construction
  • Suitable for Outdoor above ground application

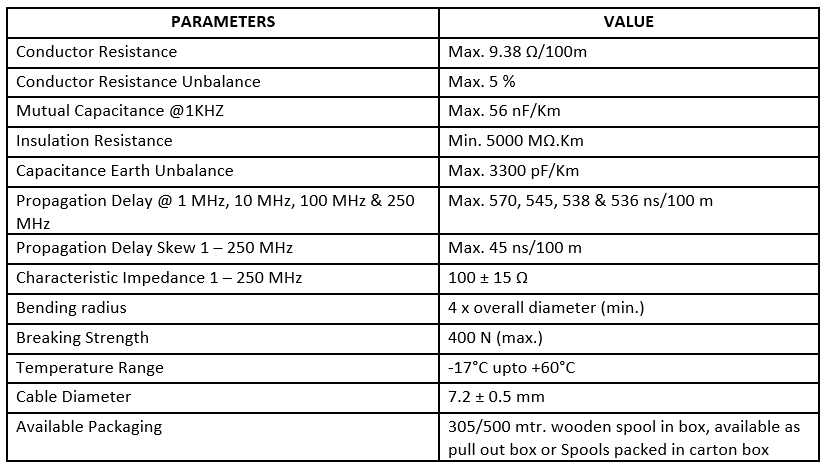

SPECIFICATION

Note: Bi-directional Testing for Return Loss & NEXT
